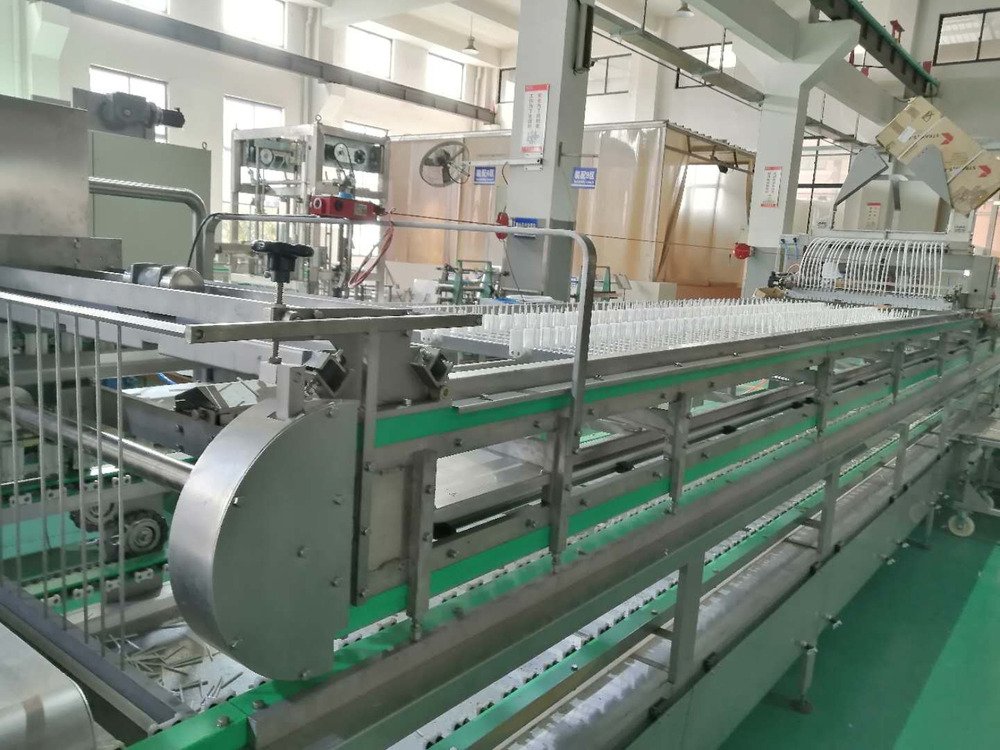

Lollipop Servo-Drive Depositing Production Line

Lollipop Servo Depositing Production Line

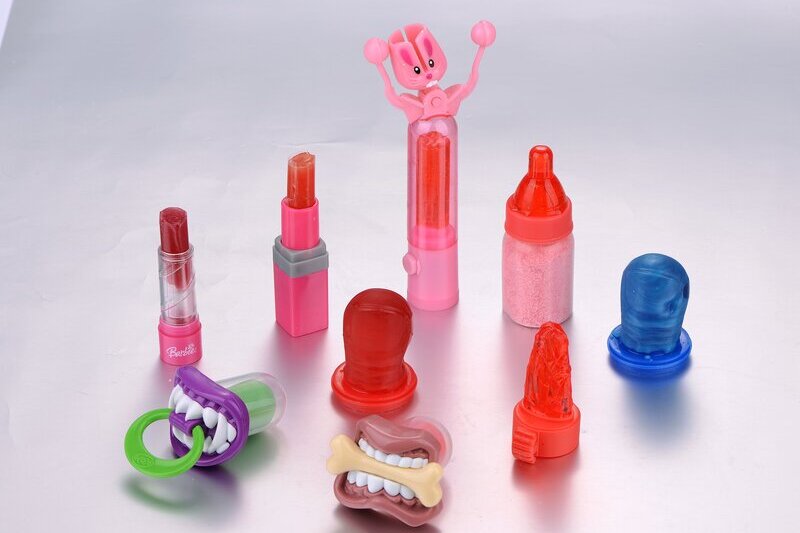

LJC series continuous vacuum film pouring line is mainly used for Lollipop pouring production. The LJC series continuous vacuum film pouring line is capable of producing not only transparent crystal sugar, double-colored sugar, double-flavored sugar, sandwich candy, but also spiral spray candy and many other colors and flavors.

Features of Lollipop Servo Depositing Production Line

  1. Precise steam temperature control system and quantitative pouring, the minimum pouring amount can reach 1g

  2. Three different output corresponding to different customer needs

  3. Food grade 304 stainless steel material ensures the hygiene and food safety of the production process

  4. High-speed pouring, rapid cooling and efficient demoulding system provide customers with perfect products

  5. Mature processing technology, convenient replacement of spare parts, perfect after-sales service system

  6. Production lines can be customized to fit your operation perfectly.

  7. Simply replace the molds and other components of the line to produce various shapes of lollipop.

  8. Syrup flow rate is precisely controlled by frequency control system to ensure stability.

Product standardization machine

Model ZBA-II ZBA-III
Capacity 360kg/h 500kg/h
Power 16kw 23kw
Steam consumpton 450kg/h 450kg/h
Steam pressure 0.6-0.8Mpa 0.6-0.8Mpa
Water consumption 2200L/H 2200L/H
Size(L*W*H) 1900*1425*2700mm 2200*1850*2700mm
Weight 2500kgs 3000kgs
Model SFJZ-II SFJZ-III
Capacity(10g lollipop) 500kg/h 720kg/h
Power (cooker) 16kw 23kw
Power (depositor) 32kw 32kw
Compressed air consumption 2m3/min 2m3/min
Compressed air pressure 0.65Mpa 0.65Mpa
Steam pressure 0.4-0.6Mpa 0.4-0.6Mpa
Steam consumption 450kg/h 450kg/h
Water consumption 2200L/h 2200L/h
Size (L*W*H) 20365*1624*2100mm 20365*1964*2100mm
Weight 12000kg 12000kg

Lollipop Depositing Production Line Specification

Model LJC-II LJC-III
Capacity(10g lollipop) 500kg/h 720kg/h
Power (cooker) 16kw 23kw
Power (depositor) 32kw 32kw
Compressed air consumption 2m3/min 2m3/min
Compressed air pressure 0.65Mpa 0.65Mpa
Steam pressure 0.4-0.6Mpa 0.4-0.6Mpa
Steam consumption 450kg/h 450kg/h
Water consumption 2200L/h 2200L/h
Size(L*W*H) 20365*1624*2100mm 20365*1964*2100mm
Weight 12000kgs 12000kgs
