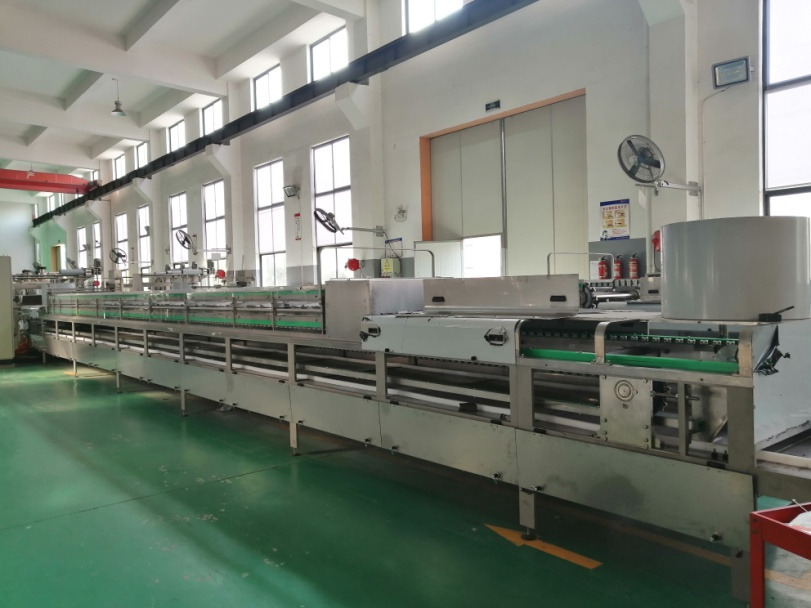

Lollipop Depositing Production Line

Lollipop Depositing Production Line

LJC continuous lollipop pouring line is mainly used for lollipop pouring production. The LJC continuous lollipop pouring line can produce not only single-color lollipops, spray lollipops, and sandwich lollipops, but also a variety of colors and flavors such as double-ball lollipops by adding a pouring head.

Features of Lollipop Depositing Production Line

  1. Precise steam temperature control system and quantitative pouring, the minimum pouring amount can reach 1g

  2. Three different outputs correspond to different customer needs

  3. Food grade 304 stainless steel material to ensure hygiene and food safety in the production process

  4. High-speed pouring, rapid cooling, and efficient demoulding system provide customers with perfect products

  5. Mature processing technology, convenient replacement of spare parts, perfect after-sales service system

  6. The production line can be customized to perfectly suit your operation.

  7. Only by replacing the molds and other parts of the production line, various types and shapes of lollipops can be produced.

  8. Syrup flow rate is precisely controlled by frequency control system to ensure stability.

Product standardization machine

Model ZBA-II ZBA-III
Capacity 360kg/h 500kg/h
Power 16kw 23kw
Steam consumption 450kg/h 450kg/h
Steam pressure 0.6-0.8Mpa 0.6-0.8Mpa
Water consumption 2200L/H 2200L/H
Size(L*W*H) 1900*1425*2700mm 2200*1850*2700mm
Weight 2500kg 3000kg
Model ZBT-II ZBT-III ZBT-IV
Capacity(5g candy) 360kg/h 500kg/h 720kg/h
Power consumption(depositor) 17kw 19kw 23kw
Compressed air consumption 0.5m3/min 0.5m3/min 0.5m3/min
Compressed air pressure 0.4-0.6Mpa 0.4-0.6Mpa 0.4-0.6Mpa
Size(L*W*H) 13500*2000*2700mm 13500*2500*2700mm 13500*2800*2700mm
Weight 6000kg 7500kg 8000kg

Lollipop Depositing Production Line Specification

Model LJC-II
Capacity(10g candy) 280kg/h
Power consumption(cooker) 16kw
Power consumption(depositor) 18.5kw
Compressed air consumption 0.5m3/min
Compressed air pressure 0.4-0.6Mpa
Steam consumption 450kg/h
Steam pressure 0.6-0.8Mpa
Water consumption 2200L/h
Size(L*W*H) 13500*2000*2700mm
Weight 6000kgs
