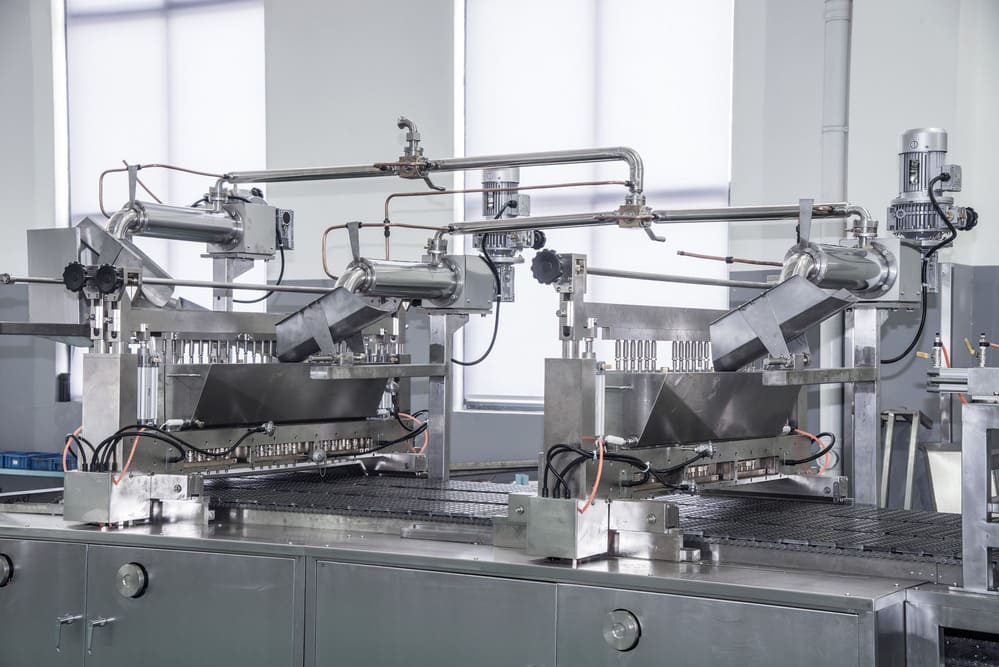

Double Layers Hard Candy Depositing Production Line

Double Layers Hard Candy Depositing Production Line

The LJC series Double Layers Hard Candy Depositing Production Line is a flexible and easy-to-use double-layer candy production machine. With the addition of a pouring system and other configurations, the pouring process can be divided into two parts, and the two pouring systems can supply different colors and flavors of syrup to produce double-layer candies with double flavors. The machine features good product compatibility, high output, and easy mold replacement. Each pouring system can also Two pouring jars can be installed for product diversification.

Features of Double Layers Hard Candy Depositing Production Line

  1. Precise steam temperature control system and quantitative pouring, the minimum pouring amount can reach 1g

  2. Three different output corresponding to different customer needs

  3. Food grade 304 stainless steel material ensures the hygiene and food safety of the production process

  4. High-speed pouring, rapid cooling and efficient demoulding system provide customers with perfect products

  5. Mature processing technology, convenient replacement of spare parts, perfect after-sales service system

  6. Production lines can be customized to fit your operation perfectly.

  7. Simply replace the molds and other components of the line to produce various shapes of hard candies such as spherical hard candies, flat hard candies, 3D hard candies, etc.

  8. Syrup flow rate is precisely controlled by frequency control system to ensure stability.

Product standardization machine

Model ELGA-800
Capacity 800kg/h (one cooking system)
Power 25kw (one cooking system)
Water consumption 2000L/h
Seam consumption 600kg/h
Size(L*W*H) 2010*1560*2480mm
Model ZBT-II ZBT-III ZBT-IV
Capacity(5g candy) 360kg/h 500kg/h 720kg/h
Power consumption(depositor) 17kw 19kw 23kw
Compressed air consumption 0.5m3/min 0.5m3/min 0.5m3/min
Compressed air pressure 0.4-0.6Mpa 0.4-0.6Mpa 0.4-0.6Mpa
Size(L*W*H) 13500*2000*2700mm 13500*2500*2700mm 13500*2800*2700mm
Weight 6000kg 7500kg 8000kg

Double Layers Hard Candy Depositing Production Line Specification

Model LJC-II LJC-III LJC-IV
Capacity(5g candy) 360kg/h 500kg/h 720kg/h
Power consumption(cooker) 16kw 23kw 23kw
Power consumption(depositor) 17kw 19kw 23kw
Compressed air consumption 0.5m3 /min 0.5m3 /min 0.5m3 /min
Compressed air pressure 0.4-0.6Mpa 0.4-0.6Mpa 0.4-0.6Mpa
Steam consumption 450kg/h 500kg/h 600kg/h
Steam pressure 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa
Water consumption 2200L/h 2200L/h 2200L/h
Size(L*W*H) 13500*2000*2700mm 13500*2500*2700mm 13500*2800*2700mm
Weight 6000kgs 7500kgs 8000kgs
